Product Description 1. sealing machineFRQM-980C is horizontal type with air filling, stand and stainless steel shell. It obtains patent of Chinese invention. 2. It can seal plastic films made from various materials continuously. Such s plastic film, aluminum foil and complex film etc. 3....Send Inquiry
1. sealing machineFRQM-980C is horizontal type with air filling, stand and stainless steel shell. It obtains patent of Chinese invention.
2. It can seal plastic films made from various materials continuously. Such s plastic film, aluminum foil and complex film etc.
3. Constant temperature control and temperature is adjustable. The conveyor can load 5kgs.
4. it can print the manufacturing date, batch number and expiry date, etc.
5. This machine is mainly suitable for the packaging of puffed food, after automatic film sealing machine to improve automatic charging device products, plastic film after inflatable packaging increases the resistance to ground, and reduce the damage to the goods during transport.The machine has perfect sealing, embossed texture clear, strong stability, etc. All of the parts and components, including inflatable mouth is after finishing processing, filling effect is very good. It very suitable for fragile, bread, the first choice of puffed food.
6. It's widely used in food, hardware, chemicals, electronic, etc.This model special for small shop, drugstore, supermarket, factory and so on.
7. Using Chinese 3C certified components. Really efficient and stable.
8. Customize: OEM and ODM available.
9. Certificate: ISO9001, CE.

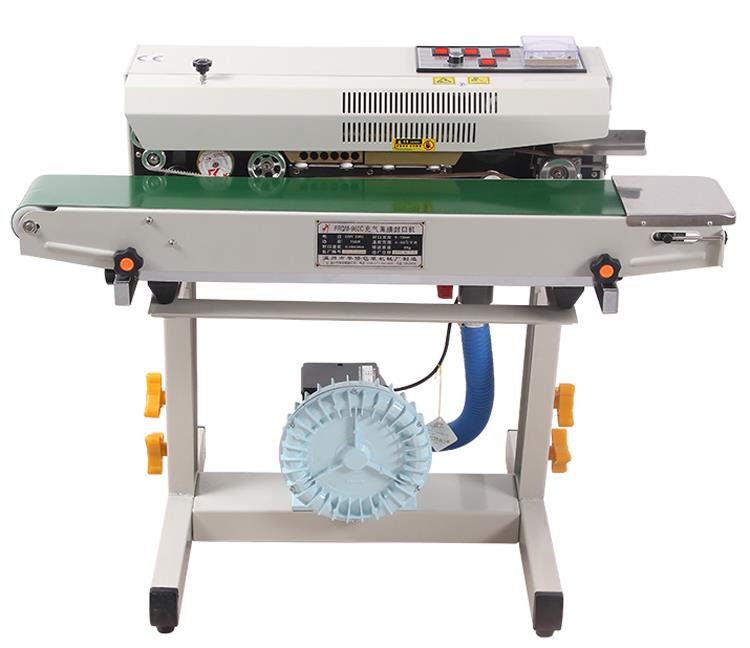

FRQM 980c sealing machine high-efficiency & perfect ink printer
electronic constant temperature control, stepless speed regulation Can seal different variety of material plastic bags
the working principle of sealing machine
when it turns on, the electronic theronic thermal component products quantity of heat to make the Temperature and speed necessary for the sealing material through the temperature control meter and the speed Regulatorthe plastic packing bag is transmitted by the conveyer belt with its sealing part sentinto between The two running sealing braids and subjected to the extrusion of the two heaters in heating area to have the Plastic film bound after being heater, then the bag is cooled in cooling area, its sealing partrolled by the Pattern roller or the inker wheelis make out with stripes or netted veins and necessary colorlabelthe drive Part consists of sealing belt, lead belt and conveyer belt all in synchronism running driven by a motor.

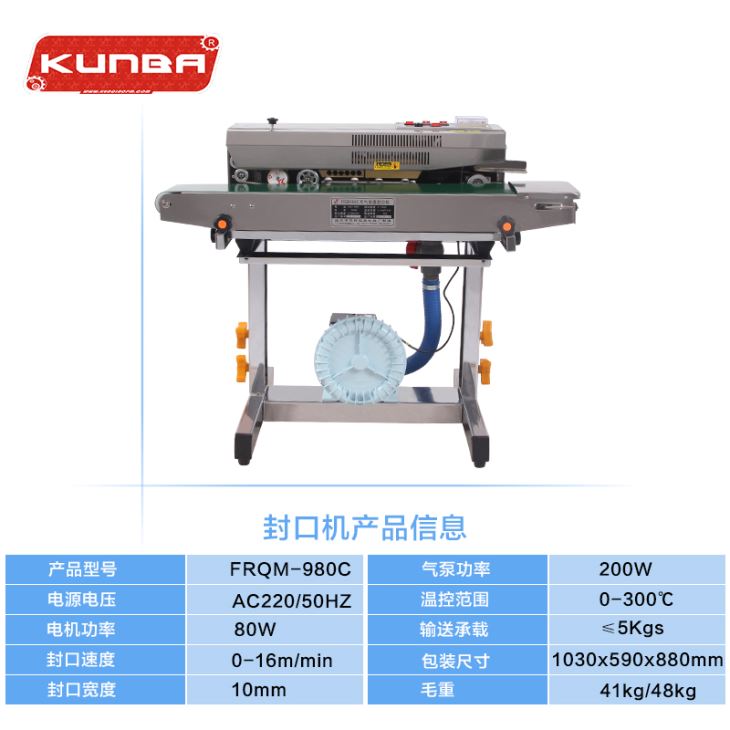

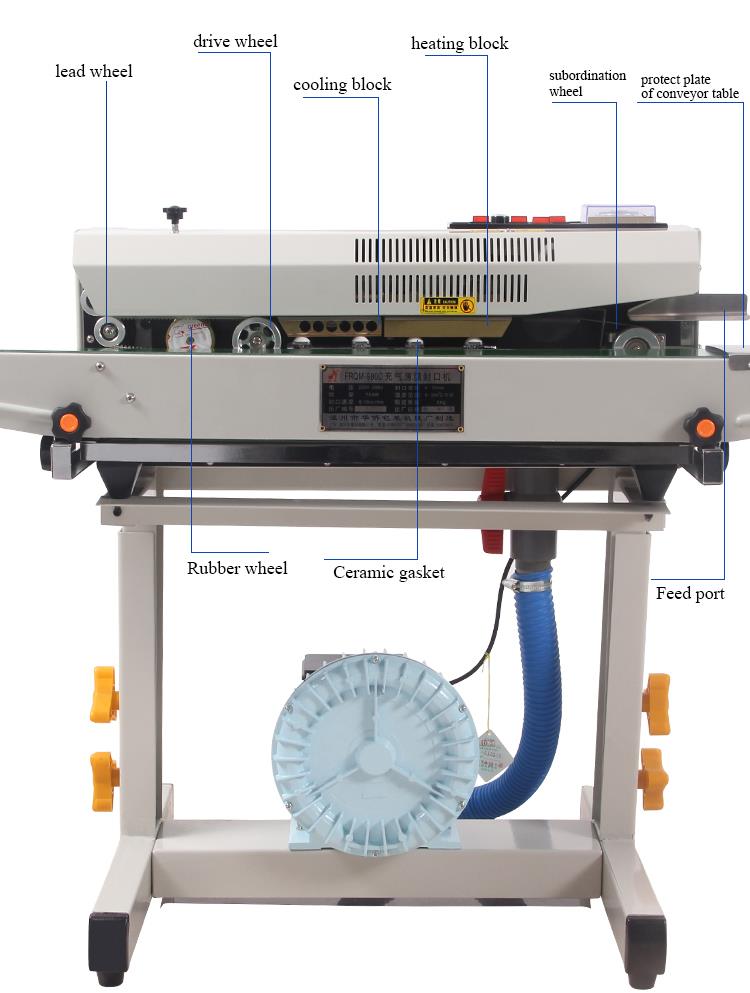

frqm980c ground type air filling sealing machine Product information
kunba frqm980c ground type air filling sealing machine Technology parameters

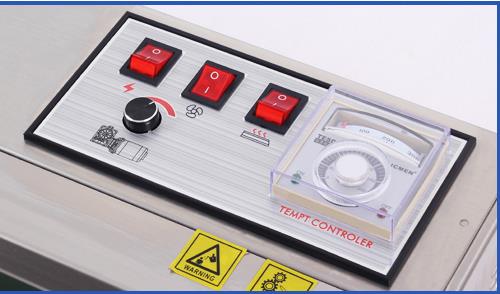

01.simple operation panel
Simplepanelsimple operation,heating bar temperature, the temperature can be seen to make your operation comfortable.built-in motor speed controller and print position controller, motor speed and print position separately controllable, easy to adjust and easy to operate.

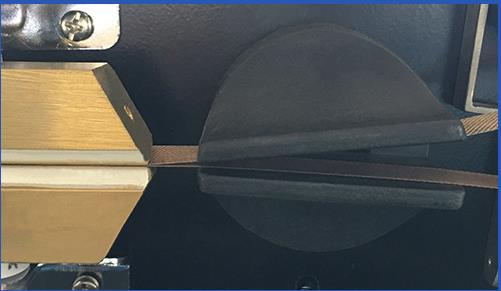

02. sealing parts

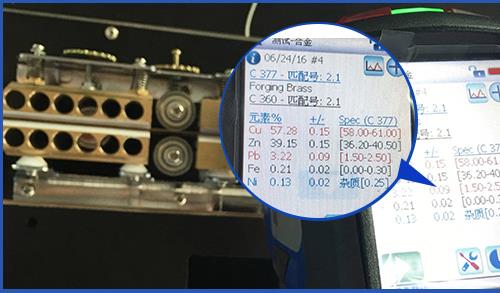

H59 brass with bold widening heating block, high strength is not easy to deformation,corrosion resistancei more uniform heating and longer service life. Upper and lower ends of heating blocks cooling block all have thermal pads to prevent heat transfer to the body- cooling fan cooling blockheat fastermore stereotypes of more beautiful.

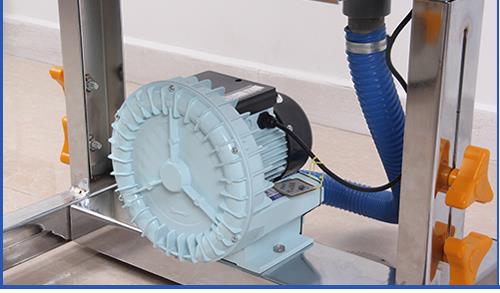

The gas is injected into the bag through the filling nozzle

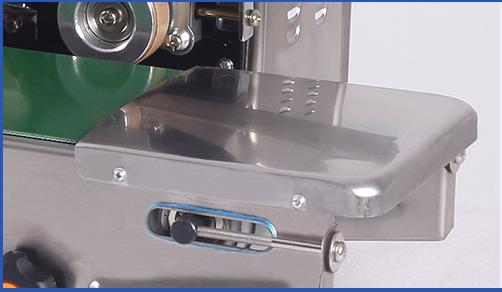

04.conveyor table guard
Adopt stainless steel matefial without comer anti-knock damage,more humane, more secure-

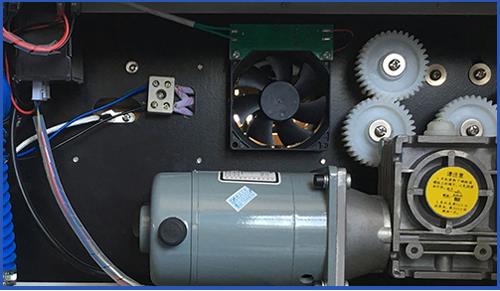

05.integration of the motor & gearbox
Adopt the design principle of german integration will be high transmission efficiency, low noise, cooling fast, service life is 3-5 tim higher than similar products.

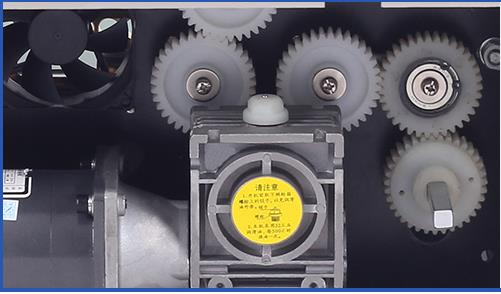

06.imported industrial nylon gear
Imported from the netherlands industrial nylon gear, smooth transmission, no noise, longer service life & wear. (if the nylon gear is damaged, it can be free replacement for lifetime.)

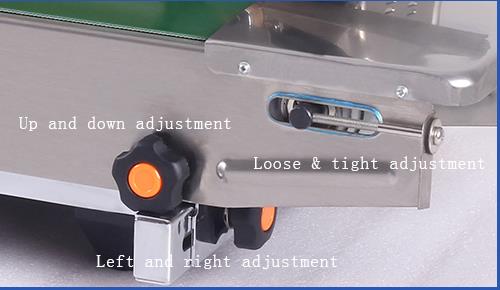

07.table can be adjusted
Up and down, front and back of the conveyor can be adjusted,it can be adjusted according to actual needs to improve work efficiency.
08.equipped w'ith a height adjustable ground frame
Can adjust machine according to operation habit
220V/50Hz 110V/60Hz (optional)
Sealing film thickness
Other specification film sealer also could be produced
