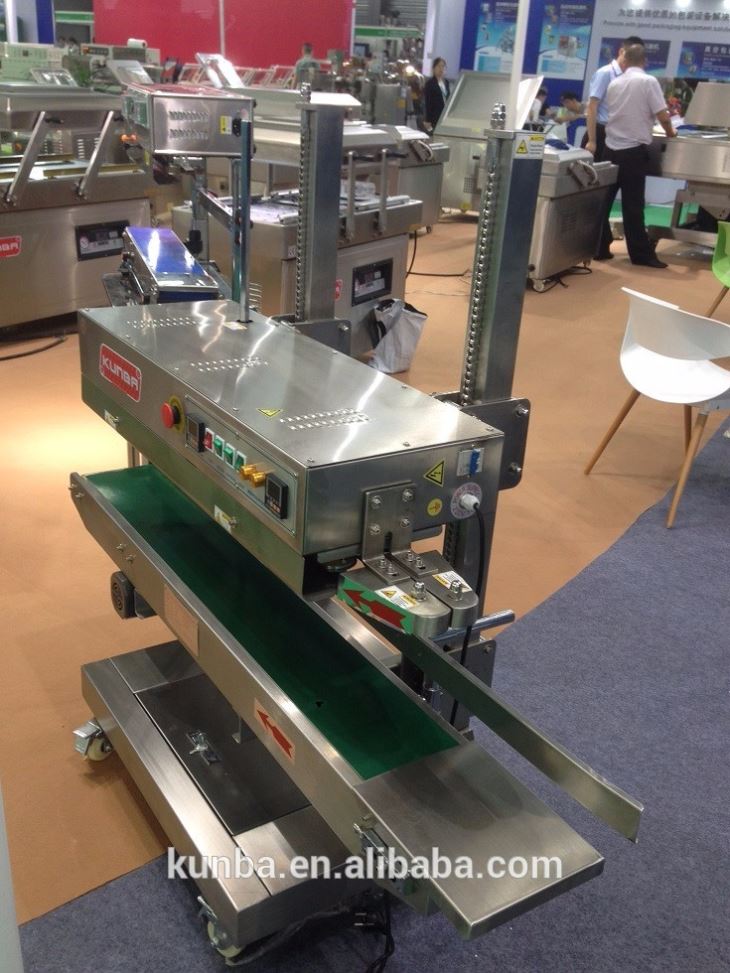

Vertical Bag Sealing Machine

Product Description 1. Sealing machine CBS-1100V is heavy duty vertical solid-ink print type with stainless steel. It obtains patent of Chinese invention. 2. It can seal plastic films made from various materials continuously. Such as plastic film, aluminum foil and complex film etc. 3. Constant...

Send Inquiry
Vertical Bag Sealing Machine
Vertical Bag Sealing Machine
Vertical Bag Sealing Machine
Vertical Bag Sealing Machine

Product Description
1. Sealing machine CBS-1100V is heavy duty vertical solid-ink print type with stainless steel. It obtains patent of Chinese invention.
2. It can seal plastic films made from various materials continuously. Such as plastic film, aluminum foil and complex film etc.
3. Constant temperature control and temperature is adjustable. Stepless speed regulating transmission big motor. Flexible height and wide changed with packet size.The conveyor can load 20kgs. Very suitable for large packing bags.
4. it can print the manufacturing date, batch number and expiry date, etc. by solid-ink at the same time.
5. It's widely used in food, hardware, chemicals, electronic, etc.This model special for small shop, drugstore, supermarket, factory and so on.
6. Using Chinese 3C certified components. Really efficient and stable.
7. Customize: OEM and ODM available.
8. Certificate: ISO9001, CE.

The Working Principle Of Sealing Machine

W’Hen It Turns On, The Electronic Theronic Thermal Component Products Quantity Of Heat To Make The Temperature And Speed Necessary For The Sealing Material Through The Temperature Control Meter And The Speed Regulatorthe Plastic Packing Bag Is Transmitted By The Conveyer Belt With Its Sealing Part Sentinto Between The Two Running Sealing Braids And Subjected To The Extrusion Of The Two Heaters In Heating Area To Have The Plastic Film Bound After Being Heater, Then The Bag Is Cooled In Cooling Area, Its Sealing Partrolled By The Pattern Roller Or The Inker Wheelis Make Out With Stripes Or Netted Veins And Necessary Colorlabelthe Drive Part Consists Of Sealing Belt, Lead Belt And Conveyer Belt All In Synchronism Running Driven By A Motor.The Product Is Sealed And Packaged To Reduce Product Wear And Tear Sealed Packaging Products Look Beautiful, Clean And Tidy Dust, Moisture, Anti-Daniage, Easy Handling And Storage Products

Technology Parameters



CBS-1100V

Power Supply/Voltage

220V 50Hz/60Hz Single Phases

Power Consumption

1200W

Sealing Speed

0-12m/min

Sealing Width:

5-10mm

Sealing Film Thickness

0.02-0.8mm

Temperature Range

0-300°C

Print Capacity

≤39

Conveyor Loading

20kg

Shipment Dimension

1100*610*1030mm

Gross Weight

122kg

Adjustable Height

180-600mm

Other specification film sealer also could be produced
