Vertical Type Heat Sealing Machine

Product Description
1. Sealing machineSF-150W is vertical and horizontal dual-use type sealing machine. It obtains patent of Chinese invention.
2. It can seal plastic films made from various materials continuously.such as plastic film, aluminum foil and complex film etc.
3. Constant temperature control and temperature is adjustable. Can work continuously with automatic conveyor belt. The conveyor can load 5kgs. It can finish the process of sealing and code printing at the same time.
4. it can print the manufacturing date, batch number and expiry date, etc.
5. It's widely used in food, hardware, chemicals, electronic, etc. This model special for small shop, drugstore, supermarket and so on.
6. Using Chinese 3C certified components. Really efficient and stable.
7. Customize: OEM and ODM available.
8. Certificate: ISO9001, CE.

the working principle of sealing machine

w’hen it turns on, the electronic theronic thermal component products quantity of heat to make the Temperature and speed necessary for the sealing material through the temperature control meter and the speed Regulatorthe plastic packing bag is transmitted by the conveyer belt with its sealing part sentinto between The two running sealing braids and subjected to the extrusion of the two heaters in heating area to have the Plastic film bound after being heater, then the bag is cooled in cooling area, its sealing partrolled by the Pattern roller or the inker wheelis make out with stripes or netted veins and necessary colorlabelthe drive Part consists of sealing belt, lead belt and conveyer belt all in synchronism running driven by a motor.

sf150 stainless steel automatic sealing machine Product details

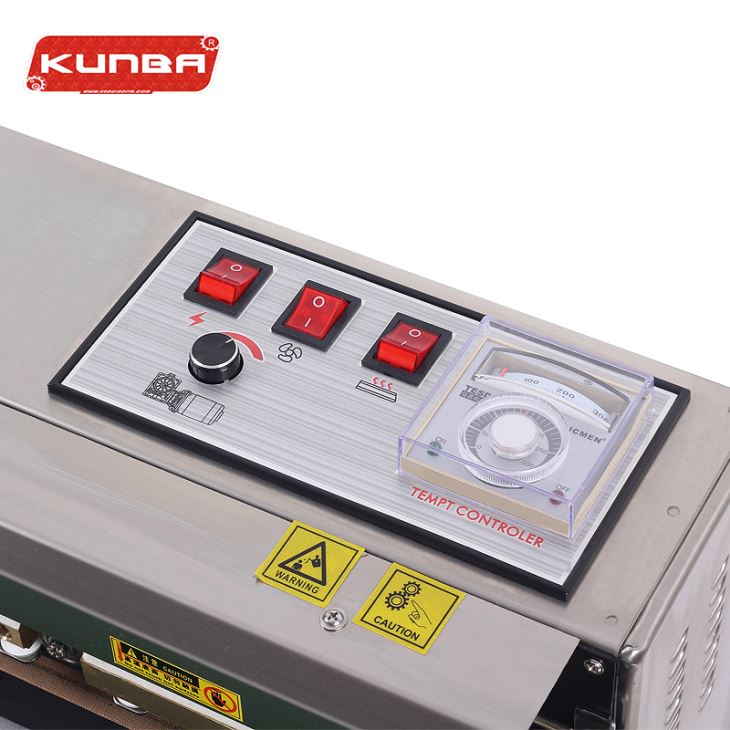

01.simple operation panel
Simplepanelsimple operation,heating bar temperature, the temperature can be seen to make your operation comfortable.built-in motor speed controller and print position controller,motor speed and print positionseparately controllable, easy to adjust and easy to operate.

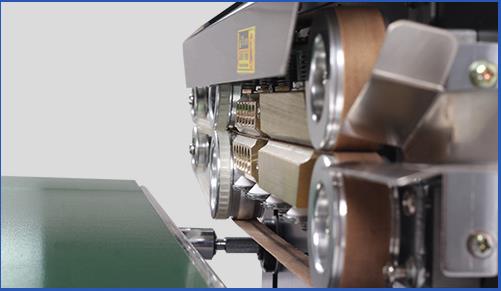

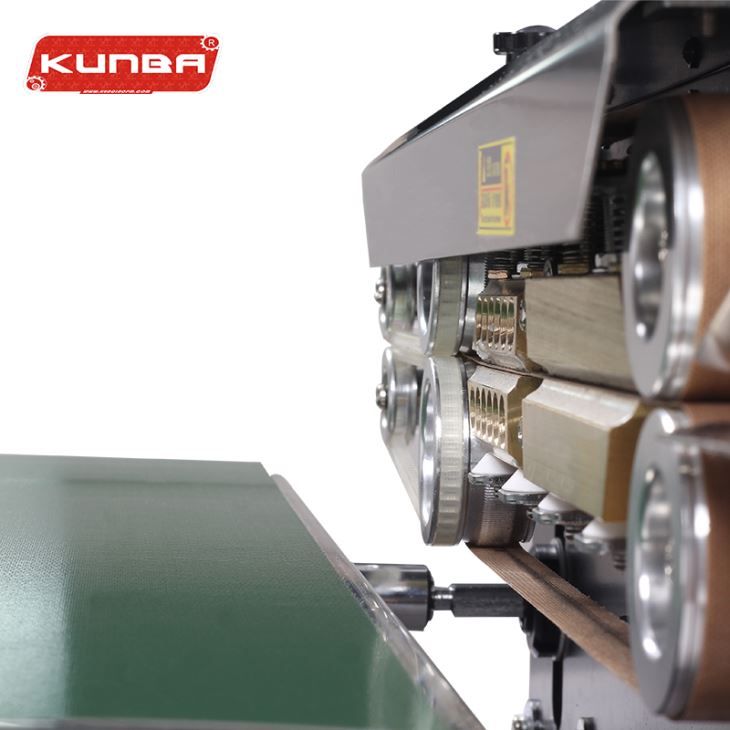

02. sealing parts
H59 brass with bold widening heating block, high strength is not easy to deformation,corrosion resistance, more uniform heating and longer service life. Upper and lower ends of heating blocks cooling block all have thermal pads to prevent heat transfer to the body- cooling fan cooling blockheat fastermore stereotypes of more beautiful.

03.integration of the motor & gearbox
Adopt the design principle of gaman integration will be high transmission efficiency, low noise, cooling fast, sen/ice life is 3-5 tim higher than similar products.

04.conveyor table guard
Adopt stainless steel material without comer anti-knock damage,more humane, more secure-

05.fine workmanship
The mechanical transmission precisely fits the heating block,sealing effect is better.

06.imported industrial nylon gear
Imported from the netherlands industrial nylon gear, smooth transmission, no noise, longer service life & wear. (if the nylon gear is damaged, it can be free replacement for lifetime.)

07.table can be adjusted
Up and down, front and back of the conveyor can be adjusted,it can be adjusted according to actual needs to improve work efficiency.

Technology Parameters

Other specification table vacuum sealer also could be produced
