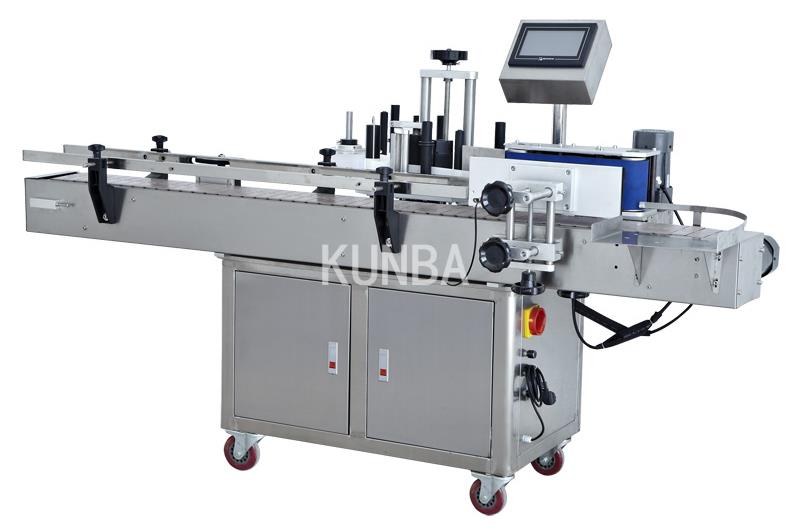

Automatic Labeling Machine

Machine Details:

1、The servo motor system.
2、Clutch design, make the label tension force more stable, and easy to improve labeling precision.
3、Advanced color man-machine interface control system.
4、Germany Siemens PLC control, high reliability.
5、Use Germany, Japan magic eye.
6、Machine structure is simple, compact, easy to operation and maintenance.
7、Can add ribbon typewriter, or heat transfer machine and automatic send bottle opener (optional).

Technical Parameters:

Voltage    220V  50/60Hz

Label width    10-130mm

Label length    15-200mm

Bottle diameter     φ20-100mm

Paper roll diameter (maximum)     φ300mm

Inside of paper roll     φ75mm

Label speed     20-40 bottles/min

Labeling precision    ±1mm

Machine size (L *W* H)     2000 * 1300 * 1500 mm

Weight    200Kg
