Aluminum Foil Plastic Sealing Machine

Product Description 1. Sealing machineFRM-980W is solid-ink print horizontal type with stainless steel. It obtains patent of Chinese invention. 2. It can seal plastic films made from various materials continuously. Such as plastic film, aluminum foil and complex film etc. 3. Constant temperature...

Send Inquiry
Aluminum Foil Plastic Sealing Machine
Aluminum Foil Plastic Sealing Machine
Aluminum Foil Plastic Sealing Machine
Aluminum Foil Plastic Sealing Machine

Product Description
1. Sealing machineFRM-980W is solid-ink print horizontal type with stainless steel. It obtains patent of Chinese invention.
2. It can seal plastic films made from various materials continuously. Such as plastic film, aluminum foil and complex film etc.

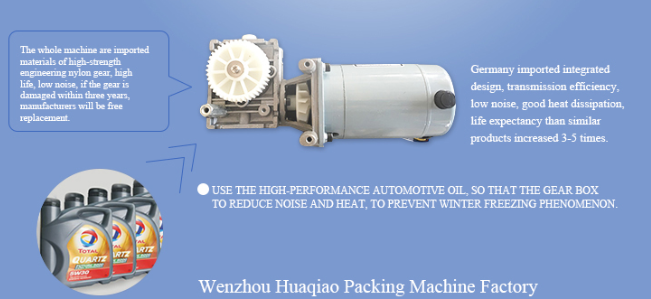

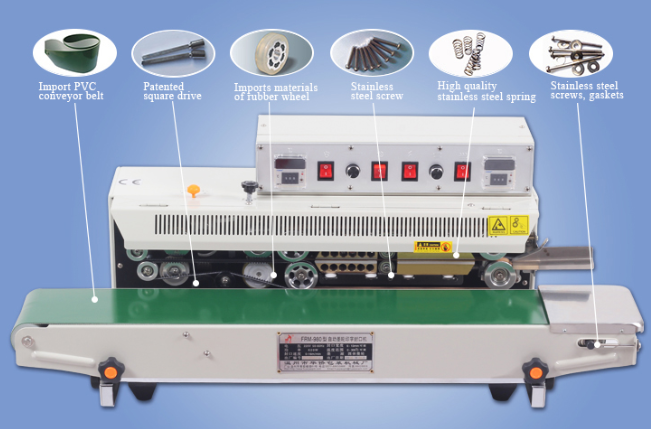

3. Constant temperature control and temperature is adjustable. The conveyor can load 5kgs. Adjustable conveyor speed. One pair each of cooling and heating blocks. High-quality polyformaldehyde gear with high- strength injection molding, running more smooth and low noise.
4. it can print the manufacturing date, batch number and expiry date, etc. by solid-ink at the same time.
5. It's widely used in food, hardware, chemicals, electronic, etc. This model special for small shop, drugstore, supermarket and so on.
6. Using Chinese 3C certified components. Really efficient and stable.
7. Customize: OEM and ODM available.
8. Certificate: ISO9001, CE

Frm 980 Sealing Machine High-Efficiency &  Perfect Ink Printer

The Working Principle Of Sealing Machine

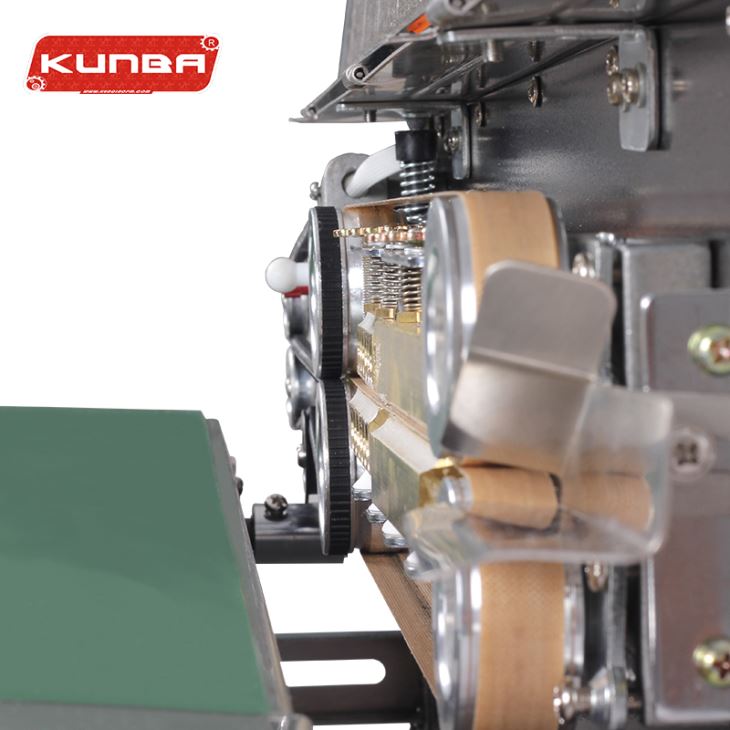

WHen It Turns On, The Electronic Theronic Thermal Component Products Quantity Of Heat To Make The Temperature And Speed Necessary For The Sealing Material Through The Temperature Control Meter And The Speed Regulatorthe Plastic Packing Bag Is Transmitted By The Conveyer Belt With Its Sealing Part Sentinto Between The Two Running Sealing Braids And Subjected To The Extrusion Of The Two Heaters In Heating Area To Have The Plastic Film Bound After Being Heater, Then The Bag Is Cooled In Cooling Area, Its Sealing Partrolled By The Pattern Roller Or The Inker Wheelis Make Out With Stripes Or Netted Veins And Necessary Colorlabelthe Drive Part Consists Of Sealing Belt, Lead Belt And Conveyer Belt All In Synchronism Running Driven By A Motor.

The Product Is Sealed And Packaged To Reduce Product Wear And Tear

Sealed Packaging Products Look Beautiful, Clean And Tidy Dust, Moisture, Anti-Daniage, Easy Handling And Storage Products

Different sealing effects it can be printed on different Dates
This machine is equiped with embossing wheel and printed seal printing.writing clear,beautiful















Technology Parameters



Specification

Model

FRM-980W

Voltage

AC220-240v/50Hz

Power

620W

Sealing speed

0-24m/min

Sealing width

6-10mm

Sealing film thickness

0.02-0.80mm

Temperature range

0-300°C

Printing letters

20 Granule

Conveyor loading

≤5kgs

Pack size

960*420*365mm

Gross weight

35kg

Other specification film sealer also could be produced
