Left-right Driven Carton Sealer

Product Description
1. Left-right driven carton sealing machine FJ-6050S can seal all kind of cartons and boxes. . According to carton size,  width and height manually adjustable.
2. The machine equipped with blade guards to prevent accidental operation stabbed.
3. Simple operation, can also be used with automated packaging lines.
4. The tow conveyors belt bearing weight is more bigger, more smoothly.
5. To ensure the attaching is better than manual work, faster and higher efficiency.
6. It's widely used in food, hardware, chemicals, electronic, etc. This model special for small shop, drugstore, supermarket, factory and so on.
7. Using Chinese 3C certified components. Really efficient and stable.
8. Customize: OEM and ODM available.
9. Certificate: ISO9001, CE.

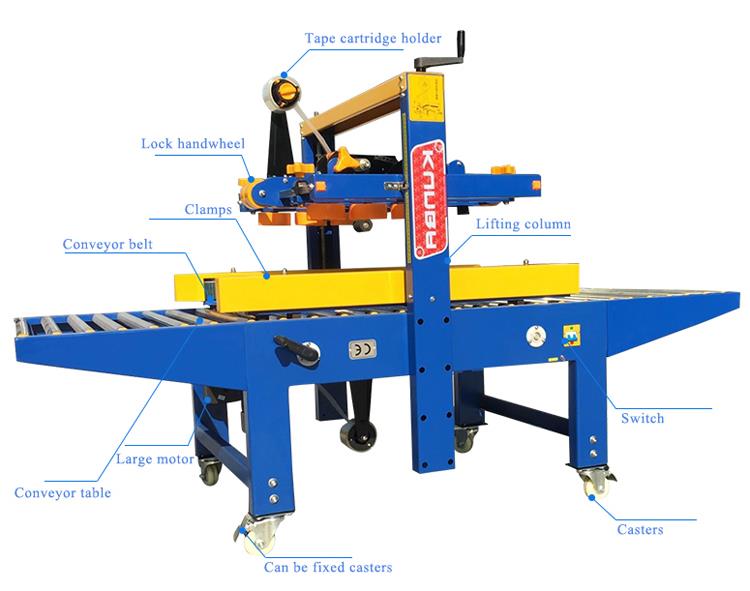

THE STRUCTURE OF KUNBA FJ-6050S

DETAILS OF KUNBA FJ-6050S

INTERNATIONAL STANDARD LINER,DESIGN MORE HUMANE

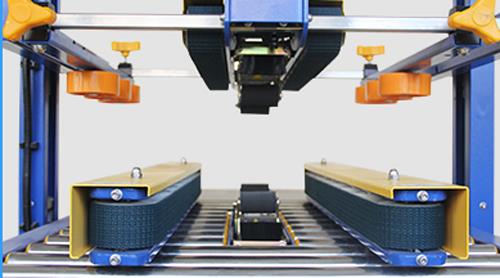

UP AND DOWN DRIVE
Up and down drive, four conveyor belt, weighing more, more stable transportation.

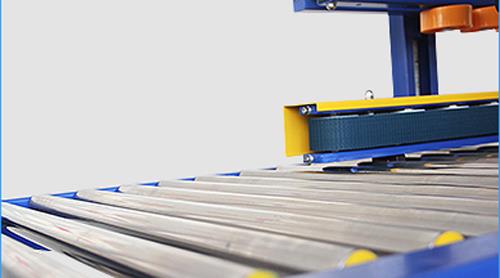

BILATERAL IMPORT AND EXPORT CONVEYOR
Bilateral import and export conveyor stainless steel wheel, high strength,handsome in appearance.

STRUCTURE FIRM COVER BEAUTIFUL
First design, more solid structure the cover is more beautiful appearance.

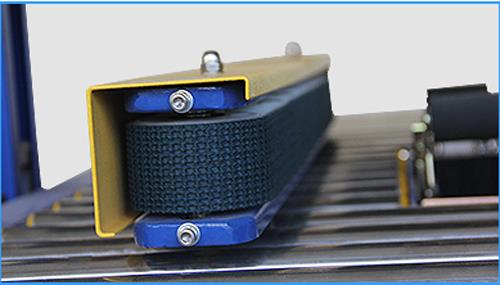

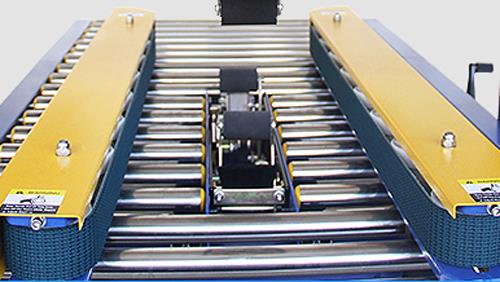

CONVEYOR BELT
Widening the import conveyor belt,belt roller all boldthickening,weighing heavy,durable.

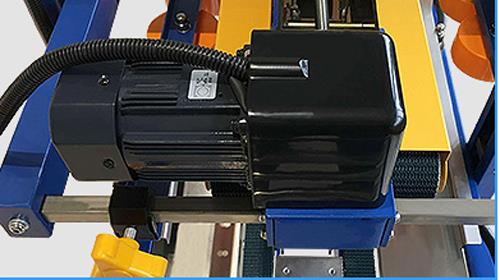

DOUBLE MOTOR
AC motor drive, dual motor power more robust, more stable delivery.

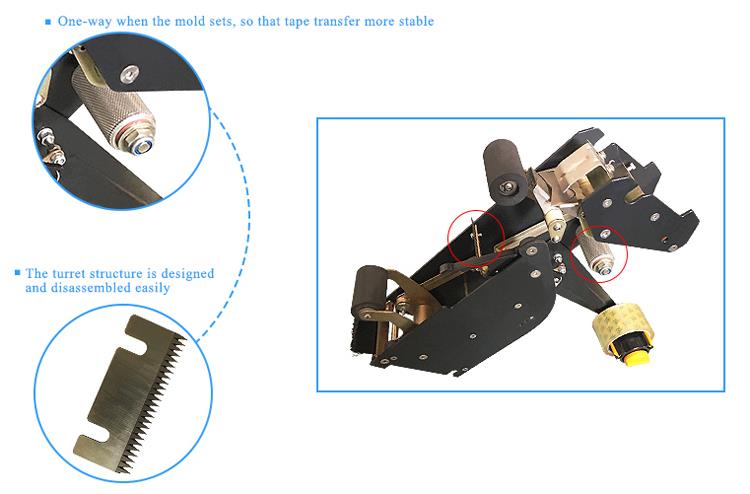

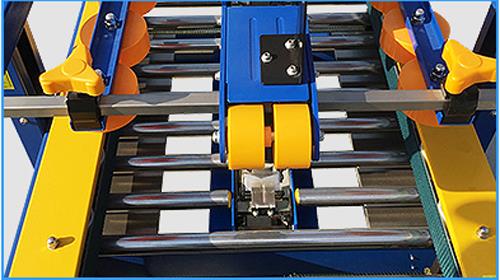

EASY TO ADJUST THE FOLDER
Easy to adjust the folder stick, conveying wheel smoother and smoother.

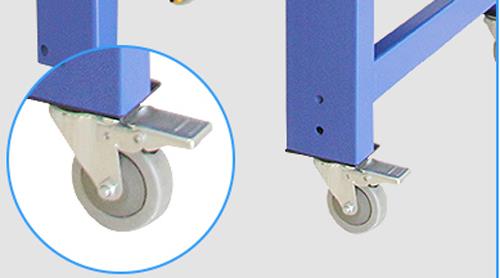

CASTERS
Self-carrying brake fixed casters,mobile or fixed operation more convenient.

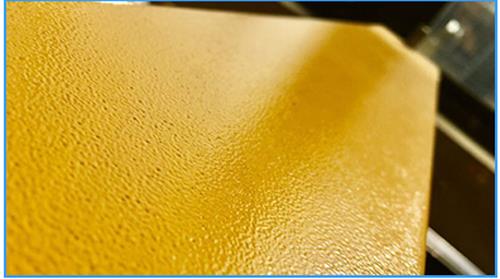

EXTERIOR PAINT
The appearance of the whole body by electrostatic powder coating is not easy to fall off, rust better, better stain resistance.

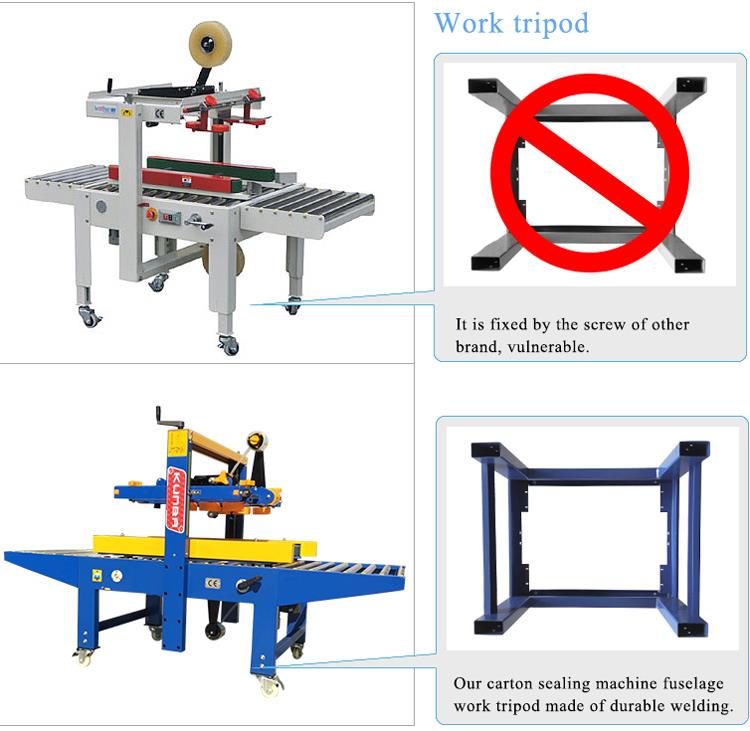

KUNBA FJ-6050 COMPARE TO OTHER BRANDS

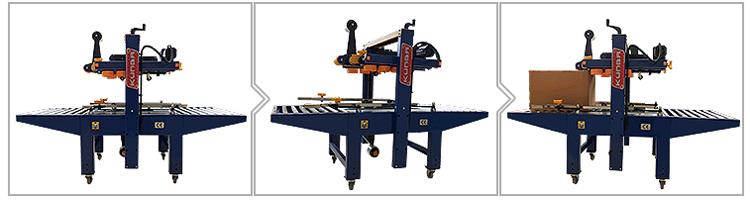

FJ-6050 OPERATING PROCEDURES

step1
Place the machine on a flat surface and check for loose parts or shifting parts.
step2
Lock the brake casters, and then adjust the tripod, so that the machine is at the
appropriate operating height.
step3
Place the required carton on the conveyor table and adjust the left and right conveyor adjustment levers
so that the surfaces of the left and right conveyor belts are in close contact with the crate. To master the
friction beltoand carton, carton deformation too general, too small cartons may slip and can not be
transmitted in the past.
step4
Adjust the liftinghandwheel, so that the bottom of the tape on the head of the
seat below the height ofa distance.
step5
Turn on the power, turn on the power switch, the carton into the left and right conveyor belt, this time,
the transport section will automatically forward the carton and sealing.

KUNBA FJ-6050 SEALING EFFECT

Technology parameters

Model

FJ-6050S

Power supply (Voltage)

AC 220V/50Hz 110V/60Hz

Power consumption

120W*2

Conveyor speed

Less than 20m/min

Adhesive tape width

48-60mm

Packing length

≥200mm

Packing width

100-500mm

Packing height

110-650mm

Shipment dimension

1170*1000*1190mm

Net weight/Gross weight

165kg/225kg

Other specification carton sealing machine also can be produced
